Enter Electronics

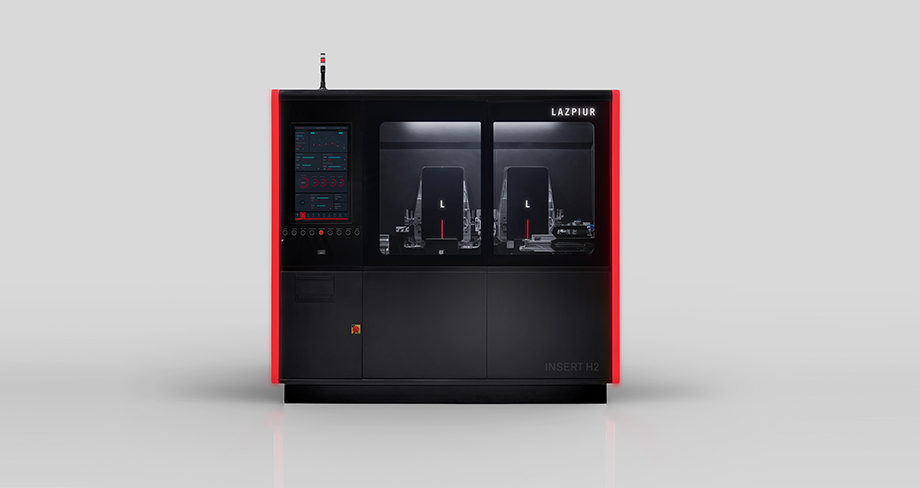

INSERT H1 / INSERT H2

New generation High-speed
Pin-insertion machines.

It’s time for a change. Focused to be the best business partner and to add value to any production line, Lazpiur sets the path in terms of design, productivity, control, user friendly and digital interaction concepts.

FOR BUSINNESS

HIGH-TECH
FACTORY.

Lazpiur opts for our modern compact design in order to optimize and modulate processes. Customizable light control which offers collaboration setting to the client. New pin inserting machines will allow to insert a higher number of terminals in a minor space of your line.

FOR PRODUCTIVITY

INCREASE
YOUR GROWTH.

The new innovative clamp allows to insert as far as two different terminal models. It also allows to insert paired terminals with different roller pitch and terminal distance in PCB. Ratio of insertion increment up to 25%. INSERT gamma offers a new terminal insertion quality control through optimized vision cameras.

Insertion rate	Max. 250 insertion strokes/min
Loading and unloading time total	4 sec.
Positioning accuracy	Cmk ≥ 2 mit +/-0.025 mm
Insertion angle	360º by servomotor
Board capacity	350 x 350 mm
Standard left to right feed
Changeover time	1-6 min
Compressed air:	5-7 bar
Machine power consumption:	43 Kva

SCALABLE
PRODUCTION.

Modular design. The new machine generation Insert H2 and Insert H1 allow to set the production line composition in function of cycle time goals, space availability and quantity of terminals to be inserted.

FOR PEOPLE

USER FRIENDLY & ERGONOMICS

Easy Interaction

The machine comes with an easy recognizable light alert code and as a result, facilitates efficient maintenance optimizing each process timing.

Easy roller change

Each roller is extracted with a robust double-rail system to an exterior position with total accessibility for the operator. The change is now faster, simpler and more comfortable.

Safety

New Machine Generation is compliant with ESD and CE regulations, and has been designed to maximize the user’s security.

Visual ergonomics

The easy visual identification of the processes different moments and needs is a functional and strategic breakthrough as a new way to relate the operator-machine duality.

IMPROVED
USABILITY.

The new insert interface offers wide screen that, thanks to a software redesign, are friendly and intuitive with a faster learning curve than ever. Multi language programming allows its use to different operators from different regions or reusing the machine in different production centers.

FOR MAINTENANCE

IMPROVED
ACCESSIBILITY &
CONNECTIVITY

The broad front gate is opened making the machine’s full front side accessible. The back gate also makes full back side accessible. The machine provides a folding step, on top of which the operator will be able to easily reach the totality of the front side space.

Insert H2 machine is equipped with a remote access option. This will allow Lazpiur’s technicians from their work station and provide a reliable diagnosis in case of any possible incident.

technical data
general specifications

TECHNICAL DATA.

Insertion rate	Max. 250 insertion strokes/min
Loading and unloading time total	4 sec.
Positioning accuracy	Cmk ≥ 2 mit +/-0.025 mm
Insertion angle	360º by servomotor
Board capacity	350 x 350 mm
Standard left to right feed
Changeover time	1-6 min
Compressed air:	5-7 bar
Machine power consumption:	43 Kva

Physical dimensions
Width	2500mm
Depth	1800mm
Height	2200mm
Weight	2500kg.

Physical dimensions
Width	1850mm
Depth	1800mm
Height	2200mm
Weight	2000kg.

GENERAL SPECIFICATIONS.

Real time insertion force monitoring or force-distance monitoring for quality assurance on press-fit applications

Active anvil for pcb support, insertion verification and force monitoring

Pin height measuring protusion from pcb bottom side (optional)

Hand scanner for change tooling and material verification (optional)

Top board dmc scanner

Bottom board dmc scanner (optional)

Top and bottom insertion by external panel flipping system (optional)

Quick change product specific conversion kits allow product flexibility

Scalable prodcution solutions through modular design

Noise pressure level: ≤ 75 db(a)

Smema interface

Re work mode to reduce production reject rate

Terminals automatic expulsion system

Measurement of panel thickness for automatic insertion depth adjusment (optional)

Specific programmable insertion depth adjusment per stroke (optional)

Vision inspection for an early detection of geometric material desviations (optional)

Vision inspection for terminal symetric cut line inspection (optional)

Capable of up to 4 different terminals with 2 double servo activated insertion heads

Conveyor and pcb table automatically width adjusment (optional)

Downward looking vision system for automatic board position correction

Data provision for customer´s data management system

Accessible and esd proofed guards

User friendly and intituive HMI

Insertion force max 1.200 N

Reel/outer diameter ≤ 600 mm

Fulfilling industry 4.0 requirements

Possiblity of line configuration for takt time balance

Double and triple pin insertion mode

Double pin insertion mode (hole distance ≠ picht)

Emergency spare part kit (optional)

Remote desktop connection
