H22
Built for high-volume production, offering the ability to insert up to four different terminals – the top-of-the-line model.
Performance
Operates at 300 strokes per minute with the capacity of inserting 3 pins per stroke. Designed to handle up to 4 terminals with 2 double heads and a 360º insertion angle.
QUALITY CONTROL

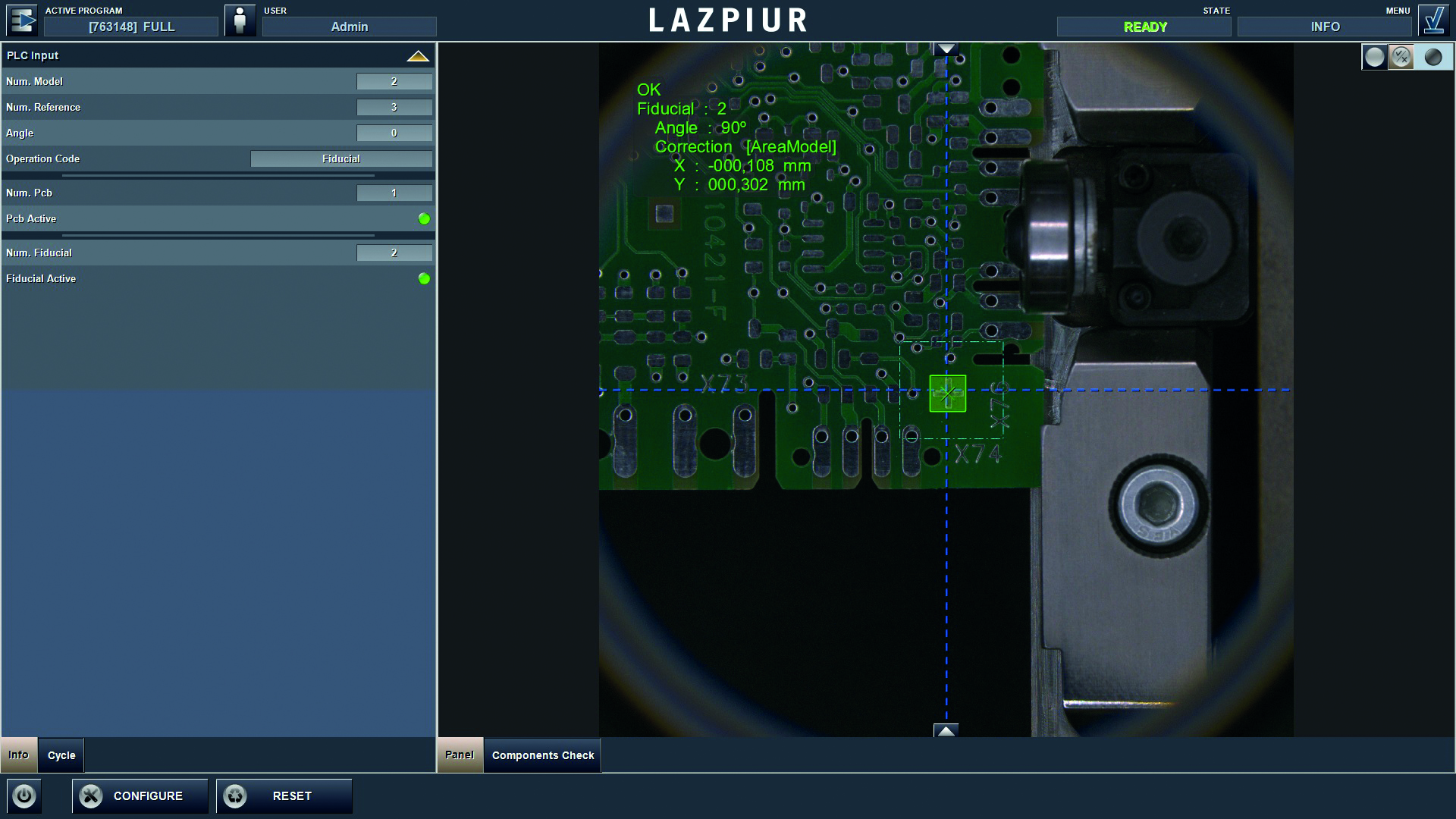

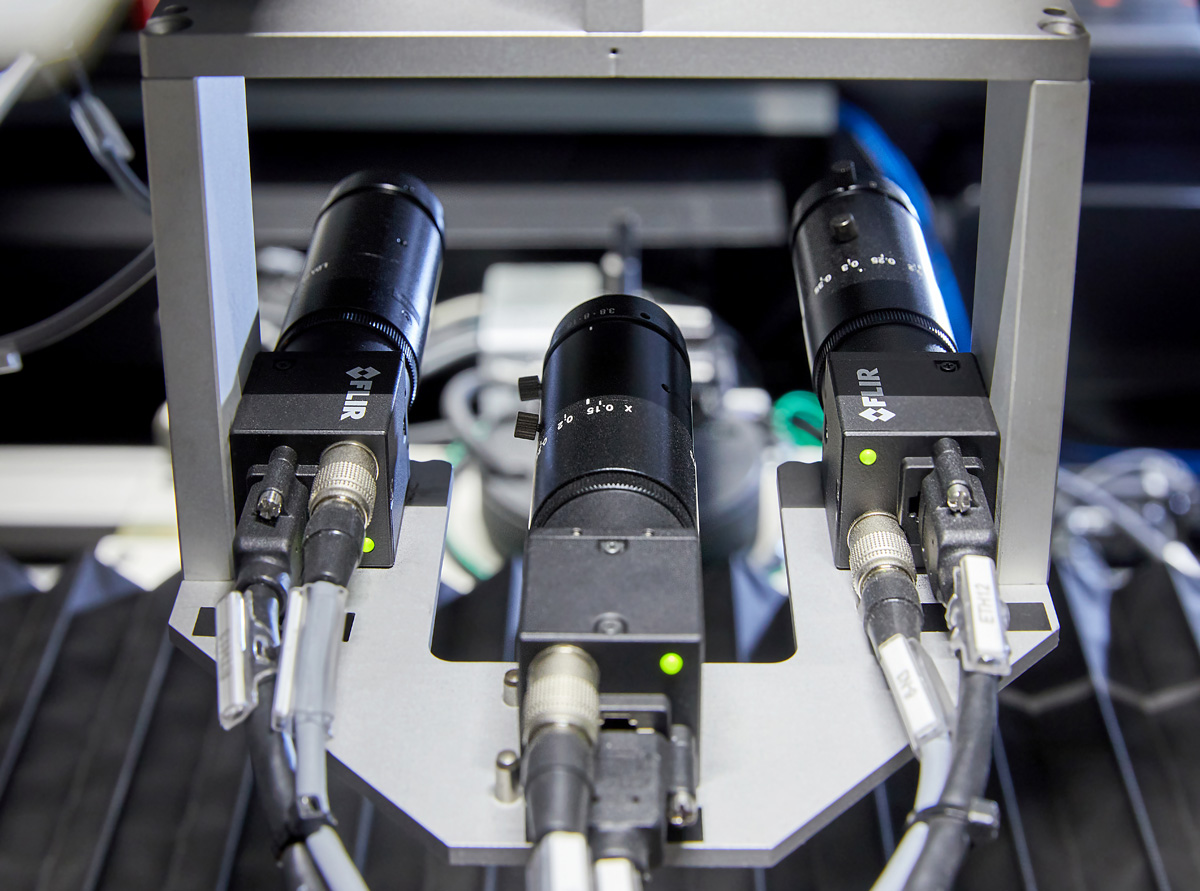

Vision inspection for both early detection of geometric material deviation and terminal symmetric cut-line inspection.
OPERATION

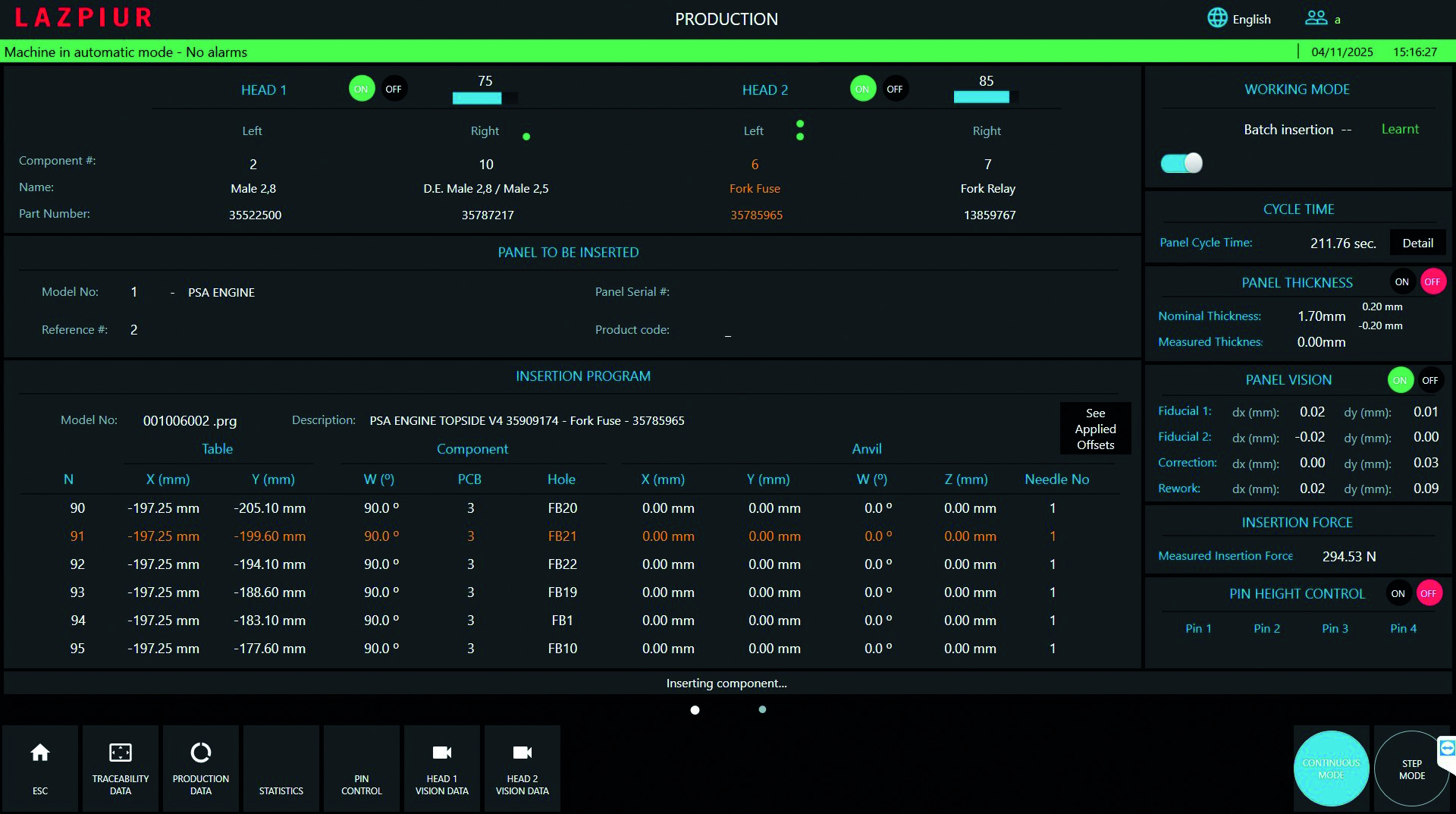

With an integrated desgin, it is a userfriendly machine that offers multiple working modes including rework, retry, batch and test panel

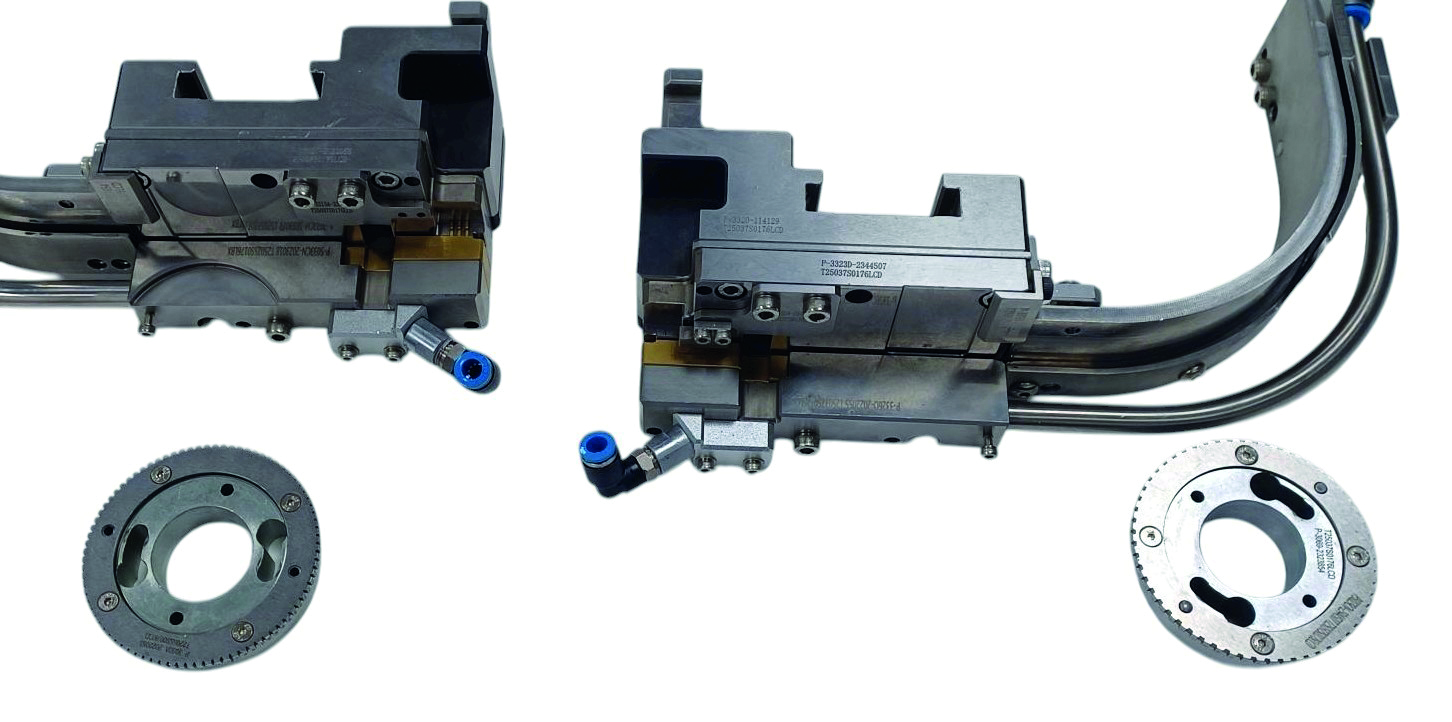

CONVERTION KIT
Equiped with the quick-change system philosophy of the convertion kit compatible with the SMART model.
